1. In Box 1. Step 1: Connect SwitchLinc bare copper wire to ground. Step 2: Connect SwitchLinc white wire to neutral.
  2. In Box 2. Step 1: Connect SwitchLinc bare copper wire to ground. Step 2: Connect SwitchLinc white wire to neutral.
  3. In Box 3 (Load) Step 1: Connect SwitchLinc bare copper wire to ground.

Similarly, how do you wire an Insteon switch?

Getting Started

  1. Turn off power and connect the corresponding wires from the junction box with the Insteon Wall Switch and cap them with wire nuts.
  2. Install Insteon Wall Switch, attach the wall plate and turn on power.
  3. Follow the on-screen instructions in the Insteon app to add Dimmer Switch.

Additionally, can you wire a 3 way switch with 2 wires? Answer: No. There must be three wires between the two switches. You CAN use the switch with only two wires, but it will act as a regular switch, not a three-way switch.

Also to know is, what color wires go on a 3 way switch?

As a safety measure, if a terminal wire is white (which is usually a "neutral" wire), it should be labeled with a band of black tape near the switch, indicating it is a hot (not a neutral) wire. The other wires in a circuit with 3-way switches are the neutral (usually white) and ground (usually bare copper or green).

What is 2 wire dimming?

Dimmer Switch (2-Wire) is able to avoid need of a neutral wire by completing an electrical circuit through the connected load. Bulbs that include a power supply like LED and CFL bulbs may emit a soft glow even when the switch is turned off.

Related Question Answers

How do I program my Insteon switch?

On your Insteon Wall Switch, press and hold the set button until the device beeps. Press and hold the set button again, then tap the set button. Encompassing all on-device programming options, use the local programming to set local properties and factory reset.

How many wires do I need for a dimmer switch?

three wires

How do I install Insteon?

Getting Started
  1. Connect the ethernet cable to your router and plug in the power cable.
  2. Connect the cables to Insteon Hub. Wait until the Insteon Hub beeps and its LED turns from red to green.
  3. Choose the app for you:

Why does my dimmer switch have 4 wires?

Since the switch cuts the power on and off, there will be a black wire coming into the switch and a black wire leaving. The whites are normally just connected together with a wire nut and the coppers are connected together with a wire nut or grounded to a metal junction box. So the new switch has four wires.

Where does the red wire go on a 3 way switch?

The Left Box:

The upper right screw gets the red wire from the right box (4-cond). The white wires tie together with a wire nut. The bare copper wires tie together with a wire nut. Be sure to attach a bare copper wire to the green screw on the switch.

What color wire goes to the black screw on a 3 way switch?

When wiring a 3-way switch, first screw the terminal screws of the new switch until they are difficult to turn. Connect the ground wire to the green screw. Connect the wire marked common to the black or dark colored screw. Connect the two remaining traveler wires to the two brass or light colored screws.

How do you wire a 3 way switch to a 3 way switch?

Common practice in wiring a multiswitch circuit is to use two-conductor (black and white) cable from panel to the first switch, and then three-conductor (black, red, white) cable between pairs of switches. White denotes neutral, a current carrying wire that is bonded to ground in the circuit breaker panel.

How do you wire a ceiling fan with a 3 way switch?

  1. Turn off the power from the breaker box for the ceiling fan and light. Remove the existing switch cover.
  2. Pull a 12/2 or 14/2 NM sheathed cable with ground from the ceiling fan box to the switch box.
  3. Move to the ceiling fan box.
  4. Move to the switch box.
  5. Neatly tuck all the wires into the box.

Can I connect red and black wires together?

Red Electrical Wires

These wires are typically used for switch wiring as well as the interconnection between smoke detectors hard-wired into the power system. You can link two red wires together, or you can link a red wire to a black wire. Since red wires conduct current, they are considered hot.

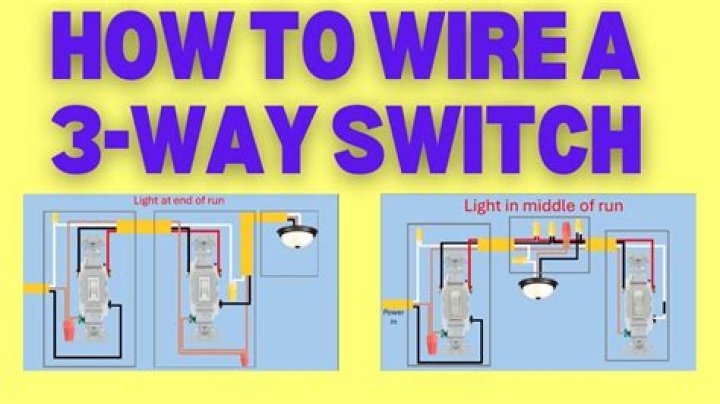

What is a 3 way switch wiring?

A three-way wall switch is a common type of light switch that makes it possible to control a ceiling light or other electrical fixture from two different locations in a room. Three-way switches are always used in pairs and include special wiring connections.

Does it matter which wire goes where on a light switch?

The black (hot) wire goes to the brass screw or into the hole in the back of the device on the same side as the brass screw. This wire is sometimes red. The green or bare copper (ground) wire, if the device has one, attaches to the green screw terminal on the switch or to the electrical box.
