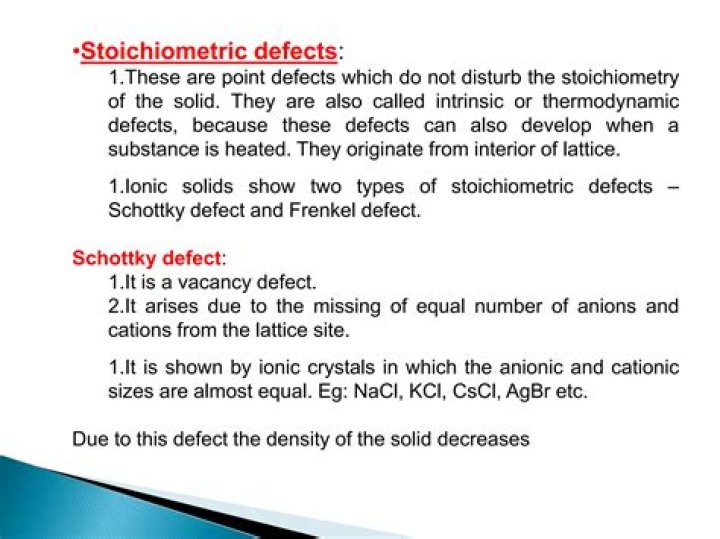

Types of stoichiometric defects:
- Vacancy Defects.
- Interstitial defects.
- Frenkel Defects.
- Schottky Defects.
Simply so, which is not stoichiometric defects?
However, a large number of non-stoichiometric inorganic solids are known which contain the constituent elements in non-stoichiometric ratio due to defects in their crystal structures. These defects are of two types: (a) Metal Excess Defect and (b) Metal Deficiency Defect.
Also Know, what type of stoichiometric defect is shown by kc1 and why? KCl shows Schottky defect as the cation K+ and anion Cl− are of almost similar sizes.
Regarding this, what are two dimensional defects?
We distinguish different kinds of crystal defects which are most easily classified according to their dimension; vacancies and interstitials (zero dimensional point defects), dislocations (one dimensional line defects), and grain and phase boundaries (two dimensional planar defects).
What are the types of crystal defects?
- Point defects (vacancies, interstitial defects, substitution defects)
- Line defect (screw dislocation, edge dislocation)
- surface defects (material surface, grain boundaries)
- Substitutional – one atom is replaced by as different type of atom.
- Interstitial – extra atom is inserted into the lattice structure at a.
Related Question Answers
Why are there stoichiometric defects?
The compounds in which the number of positive and negative ions are exactly in the ratios indicated by their chemical formulae are called stoichiometric compounds. The defects do not disturb the stoichiometry (the ratio of numbers of positive and negative ions) are called stoichiometric defects.How many types of stoichiometric defects are there?
There are 3 types of point defects: Stoichiometric defect. Frenkel defect.Does AgBr show Frenkel defect?
AgBr shows both Frenkel and Schottky defects because the radius ratio for AgBr is intermediate.Is Schottky defect stoichiometric?
Both Frenkel and Schottky defects are stoichiometric defects.What are point defects?
Point defects are lattice defects of zero dimensionality, i.e., they do not possess lattice structure in any dimension. Typical point defects are impurity atoms in a pure metal, vacancies and self-interstitials.What are metal excess defects?
A metal excess defect is one of the defects seen in the crystal structures. These are the non-stoichiometric inorganic solids that contain constituent elements in non-stoichiometric ration because of the defects in their crystal structures.What are line defects?
Line defects, or dislocations, are lines along which whole rows of atoms in a solid are arranged anomalously. The resulting irregularity in spacing is most severe along a line called the line of dislocation. Line defects can weaken or strengthen solids.Why stoichiometric defects are called thermodynamic defects?
Because according to the third law of thermodynamics perfect crystals exists at 0K. As the temperature increases the chance that a lattice may be unoccupied by an ion increases. As the number of defects increases with temperature, the defects are called thermodynamics defect.What is Antisite defect?
Antisite defects occur in an ordered alloy or compound when atoms of different type exchange positions. If one cube has an A atom at its center, the atom is on a site usually occupied by a B atom, and is thus an antisite defect. This is neither a vacancy nor an interstitial, nor an impurity.What are planar defects?
Planar Defects. A Planar Defect is a discontinuity of the perfect crystal structure across a plane. Grain Boundaries. A Grain Boundary is a general planar defect that separates regions of different crystalline orientation (i.e. grains) within a polycrystalline solid.What are crystal defects and how are they classified?
Point defects include the Frenkel type, the Schottky type, and the impurity type. The Frenkel defect involves a single ion, which is displaced from its normal lattice point and shifts to a nearby interstice, or space, between atoms in the lattice. In the Schottky defect, two ions of opposite sign leave the lattice.What is the dimensionality of a vacancy defect?
Like other point defects, vacancy is also a zero-dimensional defect. Vacancy defect puts the neighboring atoms under tension. Due to the reduction in number of atoms in the crystalline solid, vacancy defect results in the reduction of density. However, hardness of the solid may increase.When a pair of cation and anion is absent from crystal it is called?
The defect produced due to vacancies caused by an absence of anions and cations in the crystal lattice of ionic solid is called a Schottky defect. Thus in such defect, one positive ion and one negative ion are missing from their respective positions leaving behind a pair of holes.What occurs when a foreign substance replaces an atom in a crystal?
Explanation: A substitutional impurity occurs due to the occupation of a foreign atom in place of an atom in a crystal. On the other hand, interstitial impurities occur when a regular atom occupies a random space in the crystal lattice.In which of the following defect the density of the crystal is affected?
7. In which of the following defect the density of the crystal is affected? Explanation: The density of the solid crystal in case of the Schottky defect is less than the theoretical density of the material.What type of defect is shown by KCl?
Schottky defectWhat type of defect is shown by ZnS and AgBr?
Frenkel defectWhich type of stoichiometric defect is shown by the following solids KCl?
Schotkky defectWhat type of non stoichiometric point defect is responsible for the pink Colour of LiCl?
i) The pink colour of LiCl is because of the metal excess defect caused by the anionic vacancies. ii) NaCl shows Schottky defect. In the Schottky defect, an equal number of cations and anion are missing from their regular sites.What are the types of defects?
