Similarly, you may ask, what is the radiation pattern exhibited by the Yagi antenna?
The radiation pattern is unidirectional, with the main lobe along the axis perpendicular to the elements in the plane of the elements, off the end with the directors.
Similarly, what is meant by radiation pattern of an antenna? In the field of antenna design the term radiation pattern (or antenna pattern or far-field pattern) refers to the directional (angular) dependence of the strength of the radio waves from the antenna or other source. Other software, like HFSS can also compute the near field.
Subsequently, one may also ask, how does a Yagi antenna radiate?
The parasitic elements of the Yagi antenna operate by re-radiating their signals in a slightly different phase to that of the driven element. In this way the signal is reinforced in some directions and cancelled out in others. The Yagi antenna is able to provide very useful levels of gain and front to back ratios.
How does a Yagi-Uda antenna works?
Yagi antennas use mutual coupling between standing-wave current elements to produce a traveling-wave unidirectional pattern. It consists of an array of a dipole and additional closely coupled parasitic elements. The elements in the Yagi antenna are usually welded to a conducting rod or tube at their centers.
Related Question Answers
What is the radiation pattern of a Uda antenna?

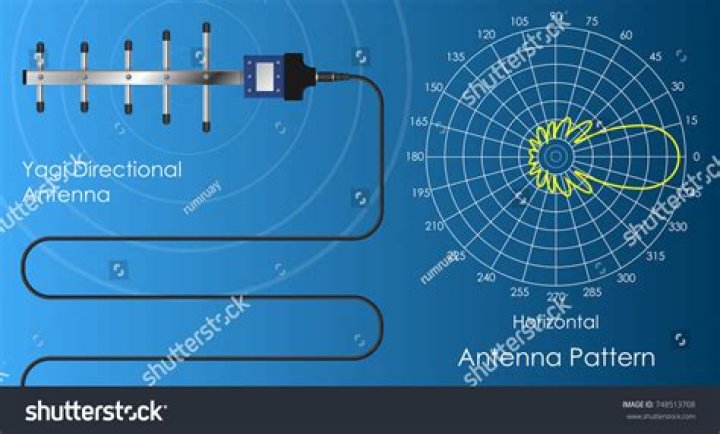

Radiation PatternThe directional pattern of the Yagi-Uda antenna is highly directive as shown in the figure given below. The minor lobes are suppressed and the directivity of the major lobe is increased by the addition of directors to the antenna.
What is Yagi-Uda antenna explain its constructional details and working in detail?
A Yagi-Uda antenna has 3 main elements that combinedly form its structure. These 3 major elements are driven element which is generally a half-wave folded dipole, a reflector and directors. The structure contains one driven element and a reflector while directors can be more than one.What is boom in Yagi-Uda antenna?
Note that the "boom" is the long element that the directors, reflectors and feed elements are physically attached to, and dictates the lenght of the antenna.Which is true for Yagi-Uda antenna?
So always the reflector length is greater than the driven element length. Explanation: The distance between directors of Yagi-Uda antenna is 0.2λ. Explanation: The reflector length is approximately 5% greater than the driven element length. So, l = 0.525λ is correct as it is the only option which is greater than 0.5λ.What is the polarization of Yagi-Uda antenna?
The Yagi Uda antenna is a propagating wave antenna which consists of one or more dipoles mounted on a crossbar. The Yagi Uda antenna can radiate radio waves as both horizontal and vertical polarized signals, as shown in Figure 1 [14]. A transmitting antenna receives waves in the form of electrical signals.What is Yagi-Uda antenna and mention its application?
Yagi Uda antenna was introduced by Shintaro Uda and Hidetsugu Yagi in 1920 [1]. It is a highly directional antenna and widely used in to receive TV signals. Now a day's Yagi -Uda antennas are also used in the fields of RADARs, satellites and RFID applications [2]. It consists of a dipole, reflector and directors.What is omnidirectional radiation pattern?
In radio communication, an omnidirectional antenna is a class of antenna which radiates equal radio power in all directions perpendicular to an axis (azimuthal directions), with power varying with angle to the axis (elevation angle), declining to zero on the axis.Is the pattern of antenna having equal radiation in all directions?
An isotropic radiator is a hypothetical lossless antenna having equal radiation in all directions.What is the nature of radiation pattern of an isotropic antenna?
The isotropic radiation is nothing but Omni-directional radiation. It has a doughnut-shaped pattern when viewed in 3D and a figure-of-eight pattern when viewed in 2D.What are the different elements of Yagi-Uda antenna?
There are three types of element within a Yagi antenna:- Driven element: The driven element is the Yagi antenna element to which power is applied.
- Reflector: The reflector element is made to be about 5% longer than the driven element.
- Director: The director or directors are made to be shorter than the driven element.
What is the effect of length of parasitic on radiation pattern?
What effect a parasitic element has on the radiation pattern depends both on its separation from the next element, and on its length. The driven element of the antenna is usually a half-wave dipole, its length half a wavelength of the radio waves used. The parasitic elements are of two types.Which lobe contains maximum radiation?
The lobe surrounding the maximum radiation is called the main lobe or the main beam.Why do we add parasitic elements in a Yagi-Uda antenna?
The parasitic elements of the Yagi antenna operate by re-radiating their signals in a slightly different phase to that of the driven element. In this way the signal is reinforced in some directions and cancelled out in others. As a result these additional elements are referred to as parasitic elements.How is Yagi-Uda antenna calculated?
Designing a Yagi Uda Antenna- Reflector length =150/f(MHz) =150/106=1.41 Meters.
- Driven element length =143/f(MHz) =143/106=1.35 Meters.
- First Director length =138/f(MHz) =138/106=1.30 Meters.
- Second Director length=134/f(MHz) =134/106=1.26 Meters.
- Length of Boom=(43/106) + (45/106) + (45 /106)= 1.25 Meters approximately.
What should be the spacing between elements in a Yagi-Uda antenna?
In the design of Yagi-Uda antennas, directors play an important role in achieving better gain and directivity. Generally, gain and directivity is enhanced by adding numbers of directors as well as by optimizing the space between them [5-10]. Spacing between the elements varies between 0.35λ to 0.4λ.How is antenna radiation pattern calculated?
The radiation pattern is defined as a mathematical function or a graphical representation of the far field (ie, for r ≫ 2D2/λ, with D being the largest dimension of the antenna) radiation properties of the antenna, as a function of the direction of departure of the electromagnetic (EM) wave.How is antenna radiation pattern measured?
Radiation Pattern: Practical antennas do not radiate uniformly in all directions. The radiation pattern is a graphical representation of the distribution of radiation energy as a function of angle about the antenna in the three-dimensional space and is generally measured in the far field region.What are types of radiation pattern?
Types of Radiation patternsOmni-directional pattern (also called non-directional pattern): The pattern usually has a doughnut shape in three-dimensional view. However, in two-dimensional view, it forms a figure-of-eight pattern. Pencil-beam pattern − The beam has a sharp directional pencil shaped pattern.
What are the 2 types of radiation pattern?
Two types of radiation patterns should be distinguished: 1) the free space radiation pattern that is the complete lobe pattern of the antenna and is a function of the wavelength, feed system, and reflector characteristics; and 2) the field radiation pattern that differs primarily from the free space pattern by theWhich plots are used to show the radiation pattern of an antenna?
Which two of the following plots are used to show the radiation pattern of an antenna? Explanation : The E and H plane plots are used to show a side view and a top-down view, respectively, with the antenna in the center of the plots.What is radiation pattern of dipole antenna?
Dipole Antennas Include:The radiation pattern reflects the amount of power radiated from the dipole in any given direction. As the performance of the antenna is the same in transmit and receive, it also reflects the 'sensitivity' of the antenna in different directions.
